Horizontal Skinners 8/04
|
|
#1 This horizontal skinner pulls the hide from the carcass. Horizontal mast is 10 feet of 1 and 1/2 inch outside diameter square tubing Square tubing for sliding brackets is 1 3/4" outside diameter. Metal thickness of the sliding bracket material will determine how tight the sliding brackets fit on the mast. When buying material, fit to match. |
Click on small pictures to see larger view
 |
 |
 |
 |
|
|

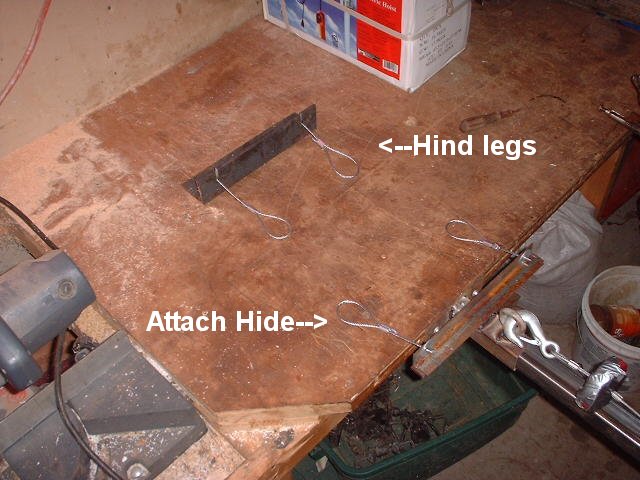

Hide Hookup Open animal, place leg fur and flank fur in the nooses and pull tight to close the loops. |

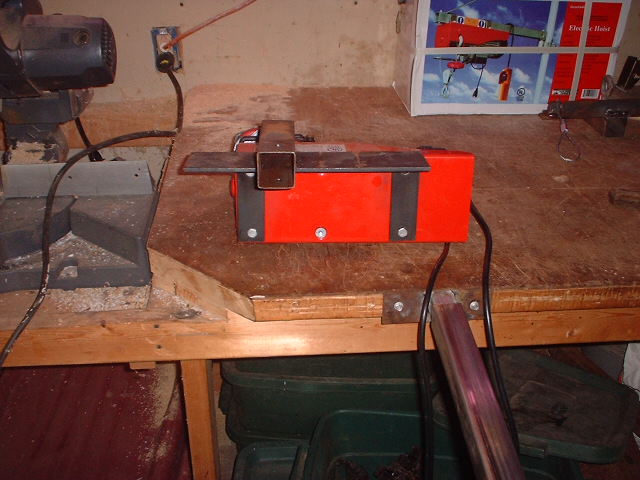

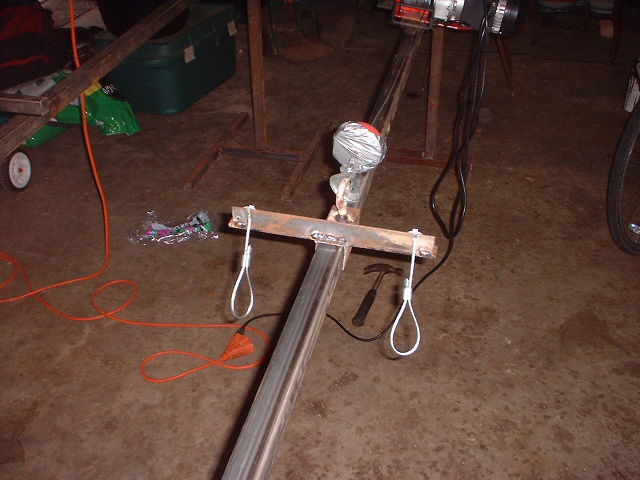

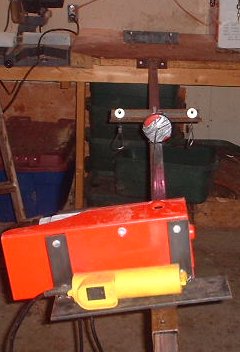

Winch and horizontal mast setup I used square tubing and flat stock to construct winch bracket. |

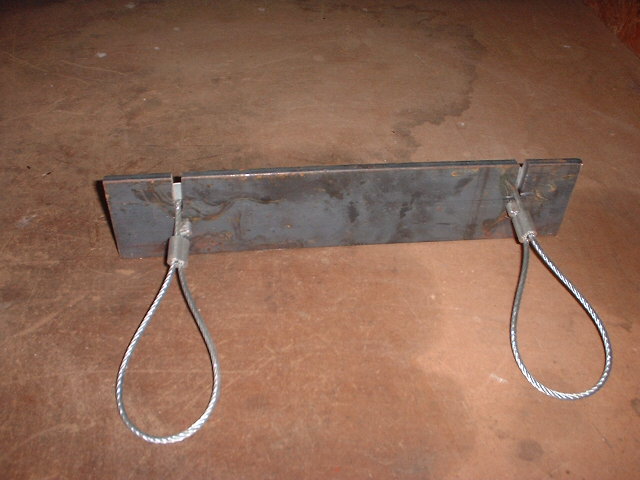

Angle Iron bracket attached to bench to hook up hind legs |
Hide and leg hookups

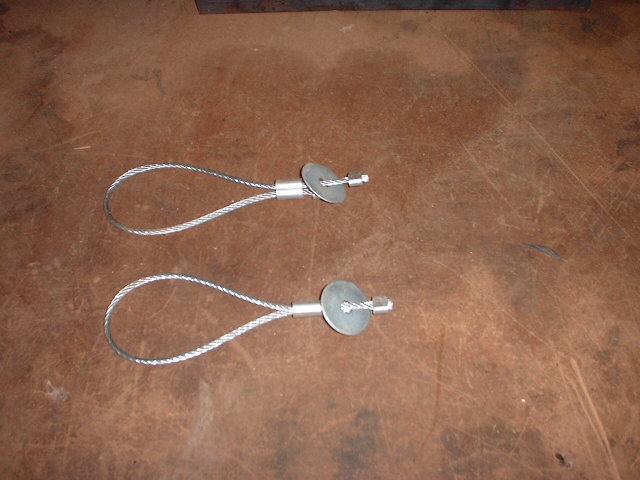

1/8 " cable, double ferrule, large fender washer and stop button. These components form a slip-type noose. |
|
 |
 |
 |
||

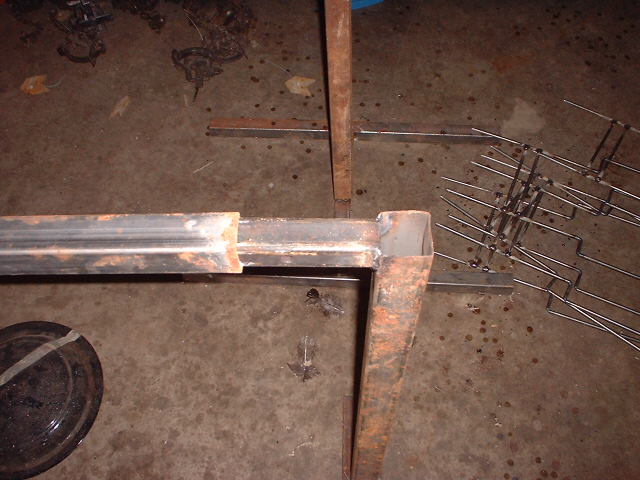

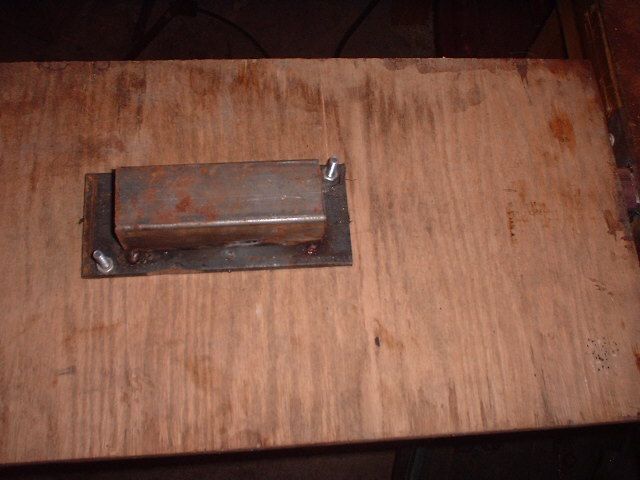

| Bench attachment spline to horizontal mast | Horizontal Mast Leg | Finished product |
|
|
#2 This horizontal skinner pulls the carcass from the hide
uses same winch system as above |
click on small pictures to see larger view
 |
 |
 |
|

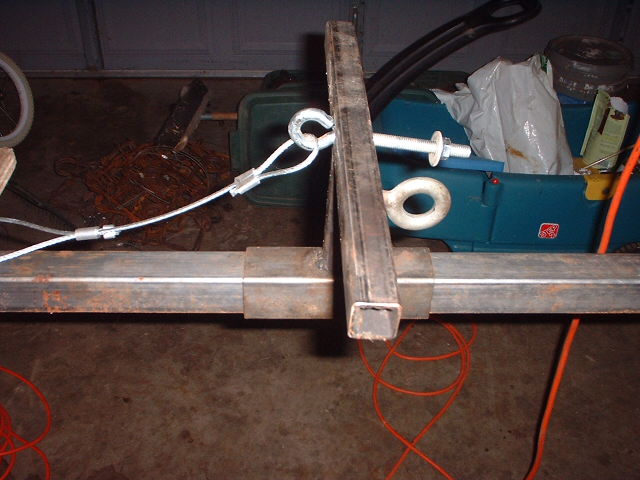

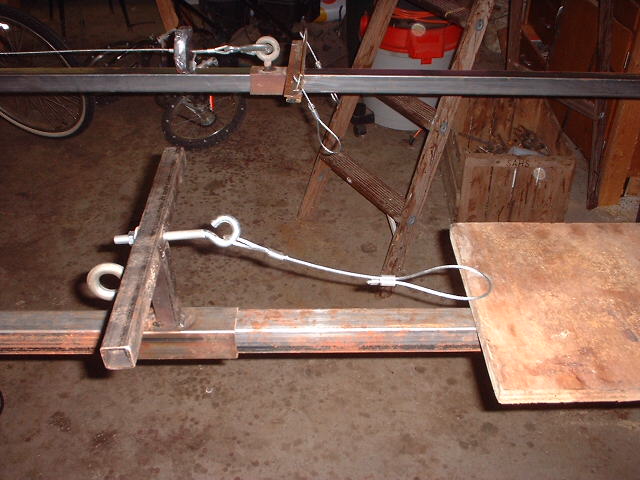

Hind leg hookups Same components to build noose as above. Eye bolt swivels to allow turning of carcass to skin around the head. |
T-bar - different view T-bracket keeps the carcass up off the mast to give it room to be turned. |

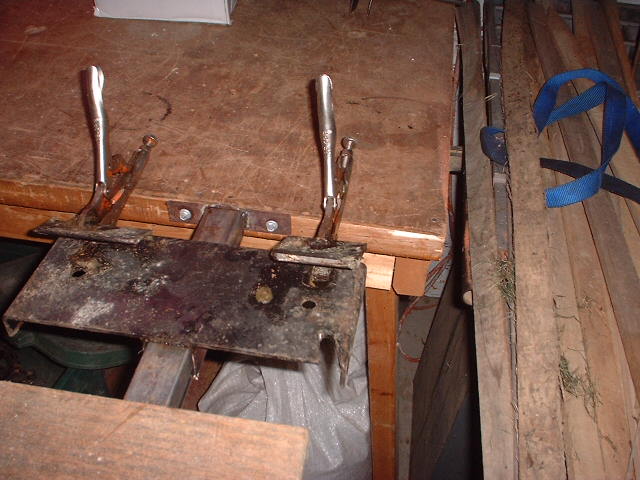

Hide Clamping device This device is pinned to the mast so it doesn't move.
|
 |
|
|
|

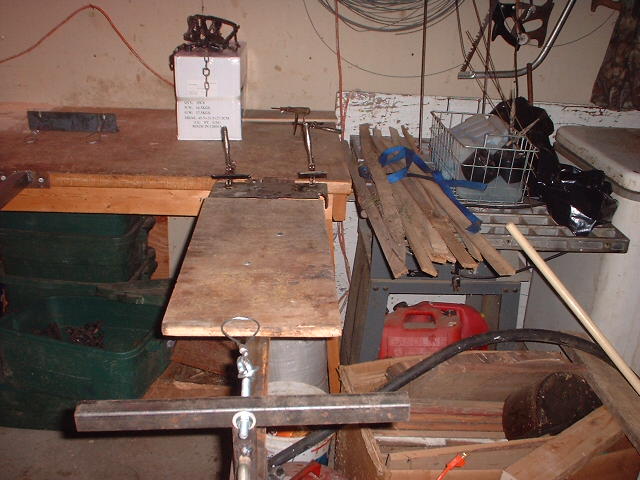

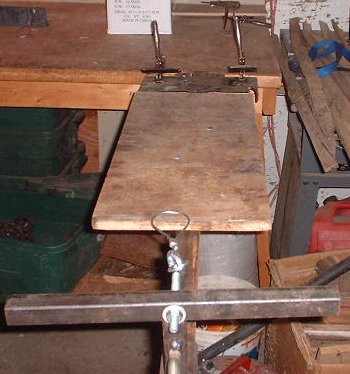

Carcass board sliding bracket This board holds the carcasses and will slide to any position. |

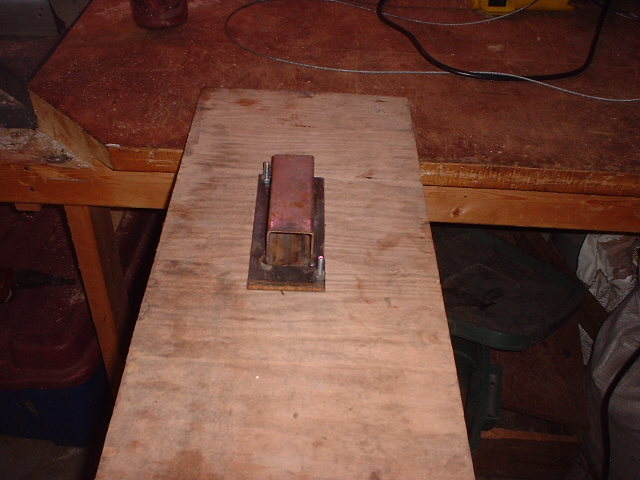

The board is bolted to a strip of metal running lengthwise. The piece of metal is welded to the 1 3/4" square tubing and fits like a sleeve over the main mast. | Horizontal Mast Leg |
 |
FINISHED PRODUCT |
